OVERVIEW

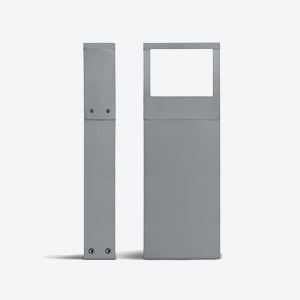

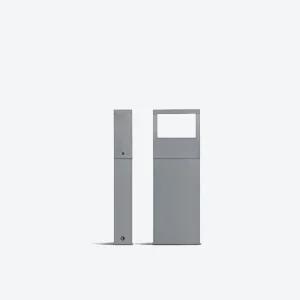

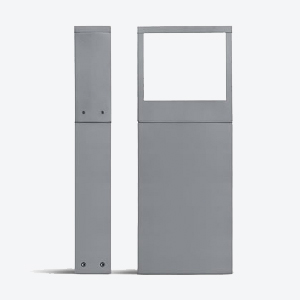

Collection of bollards for commercial and institutional applications.
Exceptional European build quality with high corrosion resistant finish. Robust marine grade die-cast aluminum construction with stainless steel fasteners and factory sealed micro-prismatic glass diffuser.
Brochure ►
FEATURES
3 sizes
Symmetric distributions
Operating temperature -30°C/+30°C
IP54, IK06, UL Listed for wet location
White, Black or Aluminum gray
5 year limited warranty
SPECIFICATIONS
Power 7 / 12.5 / 26 watts
Output 204 to 1133lm
Distributions Downward symmetric
Color 2700 / 3000 / 4000 K
Cri 80, 90
Controls Dimming -0-10V
Lumen maintenance : L80 70 000 Hours
MODELS / Downloads
MICROCOOL SQUARE Bollard
Model: S7287
Spec ► IES ►CAD ► Instructions ►
MINICOOL SQUARE Bollard
Model: S7286
Spec ► IES ►CAD ► Instructions ►
COOL SQUARE Bollard
Model: S7285
Spec ► IES ►CAD ► Instructions ►
ALSO AVAILABLE AS
S.7236W S.7241W S.7245W S.7246W
S.7287W S.7286W S.7285W
