OVERVIEW


Unique lighting system for wall recessed lighting in exterior or interior applications. Ghost is designed for low mounting heights with downward asymmetric light distribution. Low luminance with light source regressed inside the luminaire and shielded from all viewing angles.

Watch the video

FEATURES


Recessed application with back box

IP65, IK10, UL Listed for wet location

5 year limited warranty

SPECIFICATIONS


Power  4 to 28W (System) / 2.5 to 19.8 (source) Watts

Output  Up to 2077 lumens

Distributions  Asymmetric

Color 2700 / 3000 / 4000 K

Cri  80

Controls  See spec sheet

Lumen maintenance L80 50.000 hours

DOWNLOADS

Models:
SGHO-C10, SGHO-C17, SGHO-C32 or SGHO-C62
Spec ► Instructions ► IES ► CAD ►

Ghost can be easily fastened to the vertical or horizontal structure members by the universal mounting system ( shipped with the products).

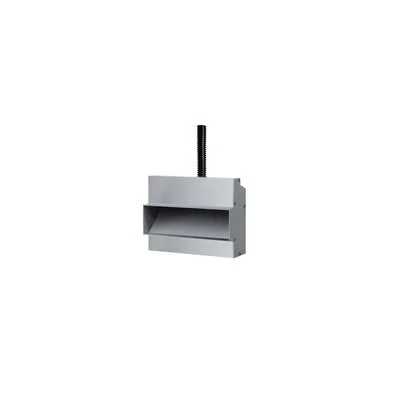

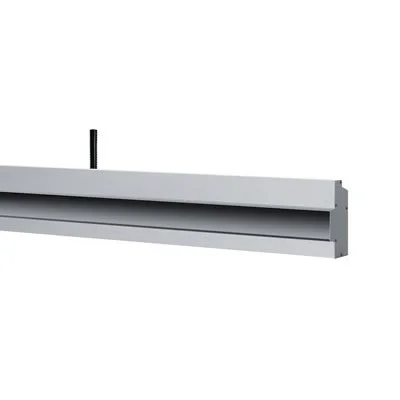

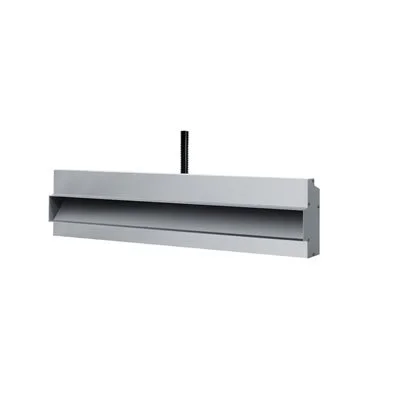

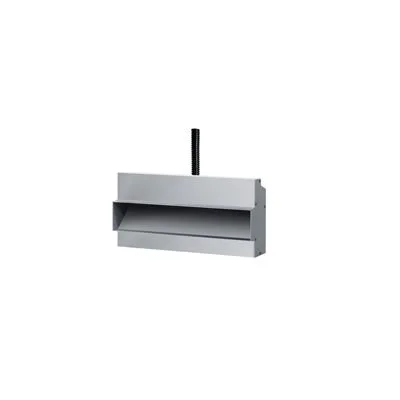

The system consists of a series of back boxes that create the recessed cavities during the construction of the wall. The boxes can be cladded with most materials up to 21mm thick ( Wood, metal, stone, tiles solid surfaces or composite panels).

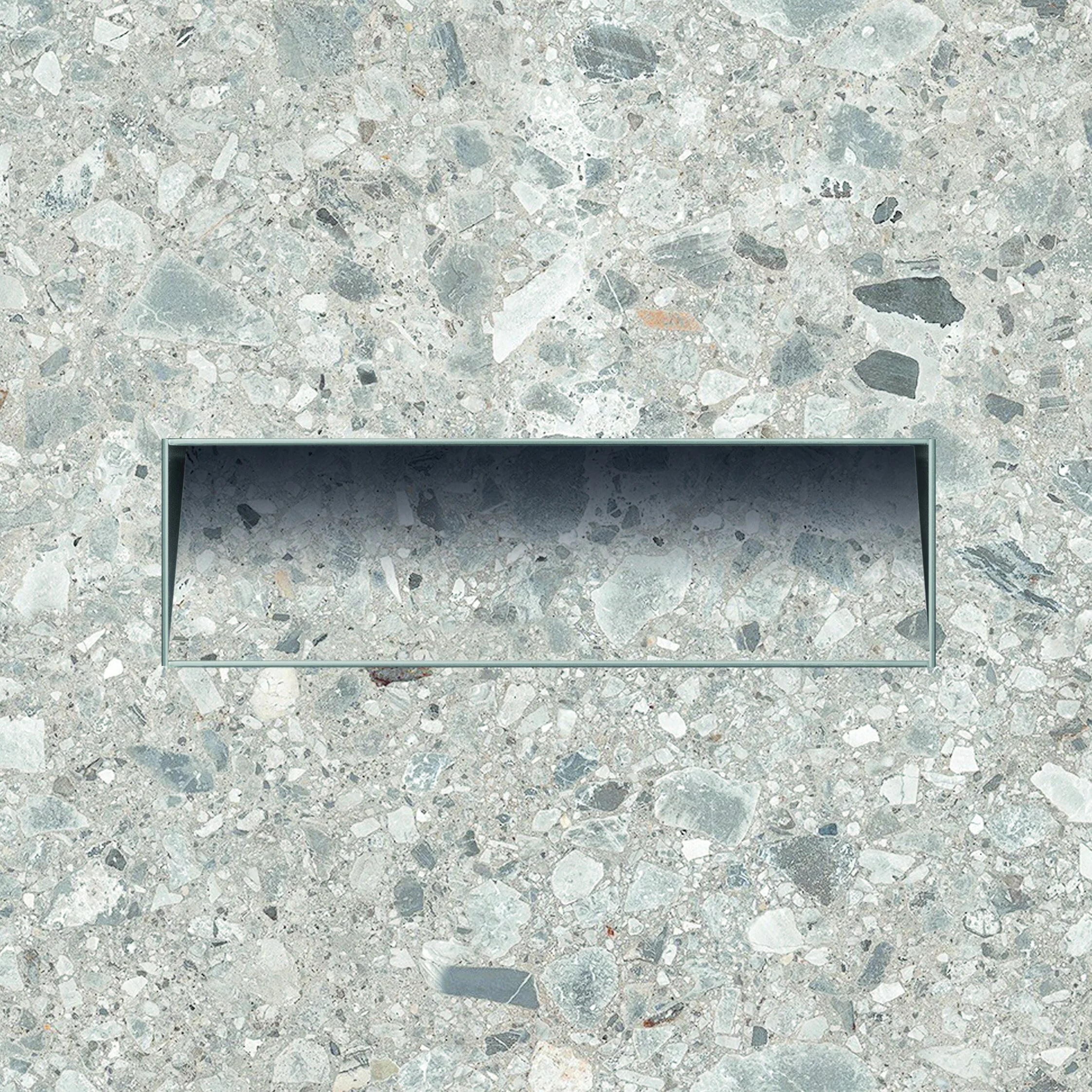

PLASTER, STUCCO AND PLASTERBOARD

Ghost for cladding can be installed onto walls that are cladded with monolithic surfaces.

The final coat of the material can be feathered to the backbox finishing edge to obtain a seamless finish.

CUSTOMIZABLE FRONT PANEL

The fixture ships complete with an anodized aluminum front panel. It is also possible to achieve a seamless appearance by fabricating the front panel with the same material that is applied to the wall.
