OVERVIEW


Collection of in-grade luminaires for exterior applications.
4 floor grazing distributions to illuminate pathways, sidewalks, greenery or simply to create a pleasing lighting graphic effect.
Walk-over applications in most material like wood, pavers, or concrete. Unique surface mount design that simplify the installation. Simply fasten the luminaire to the floor with 4 screws, no back box or clearance below grade is required.
Drive-over applications requires the mounting flange/anchor bolts (to be ordered separately).
Suit and Minisuit can also be installed in vertical surfaces.

Exceptional European build quality with high corrosion resistant finish. Robust marine grade die-cast aluminum construction with stainless steel fasteners and factory sealed glass lens.

Brochure ►

FEATURES


Simple surface mount design

2 body sizes

4 floor grazing distributions

4000 KILOS drive over

High efficiency electronic driver > 50,000 H

Operating temperature -30°C / +30°C

IP67, UL Listed for wet location

Black (MINISUIT only) or Aluminum gray

5 year limited warranty

SPECIFICATIONS


Power   2.2 to 8 watts

Output  38 to 170 lumens

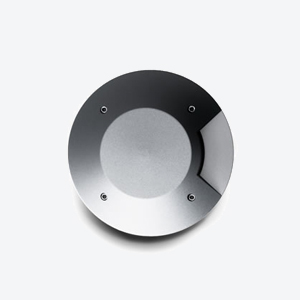

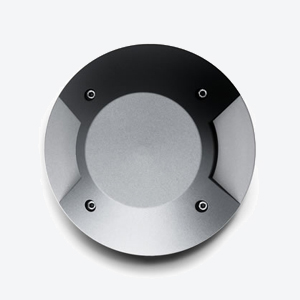

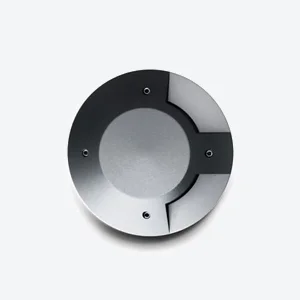

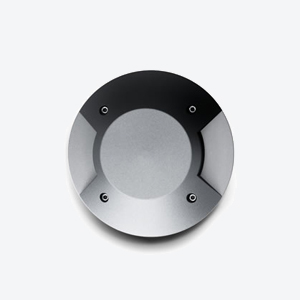

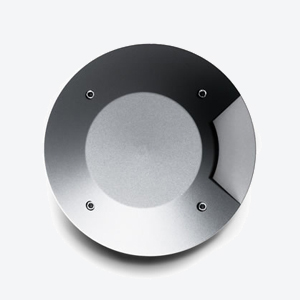

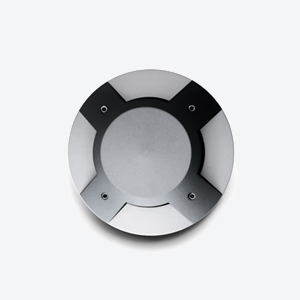

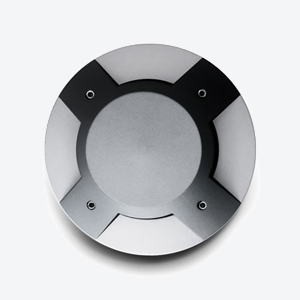

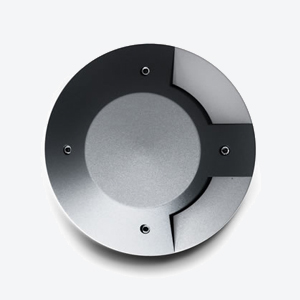

Distributions  Floor grazer with 1, 2 or 4 windows

Color  2700K (MINISUIT only) / 3000K / 4000 K

Cri 80

Controls Optional

Lumen maintenance (MINISUIT) L80 70,000 hours

Lumen maintenance (SUIT) L70 50,000 hours
